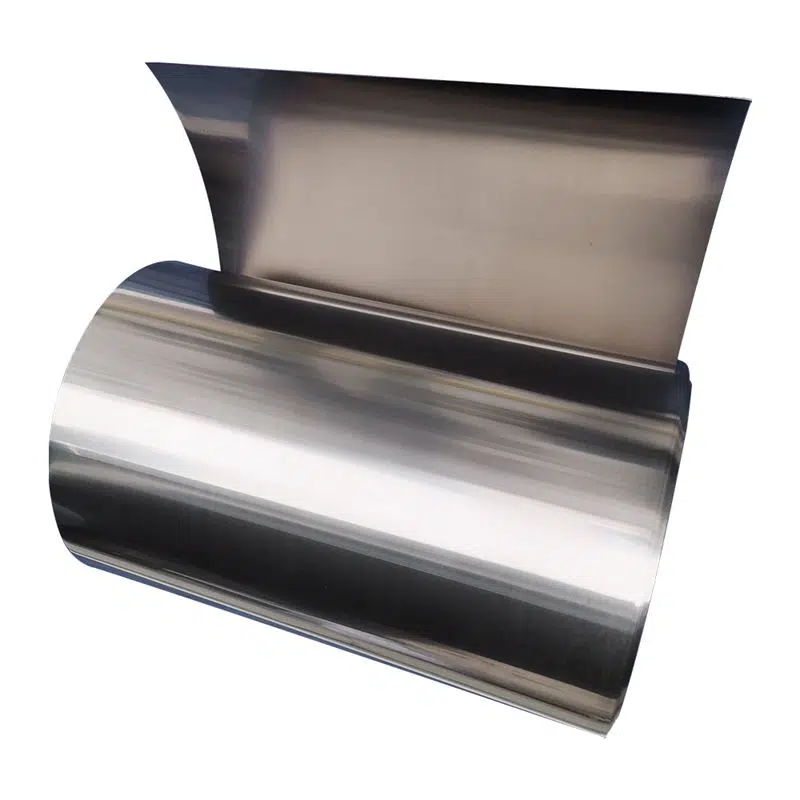

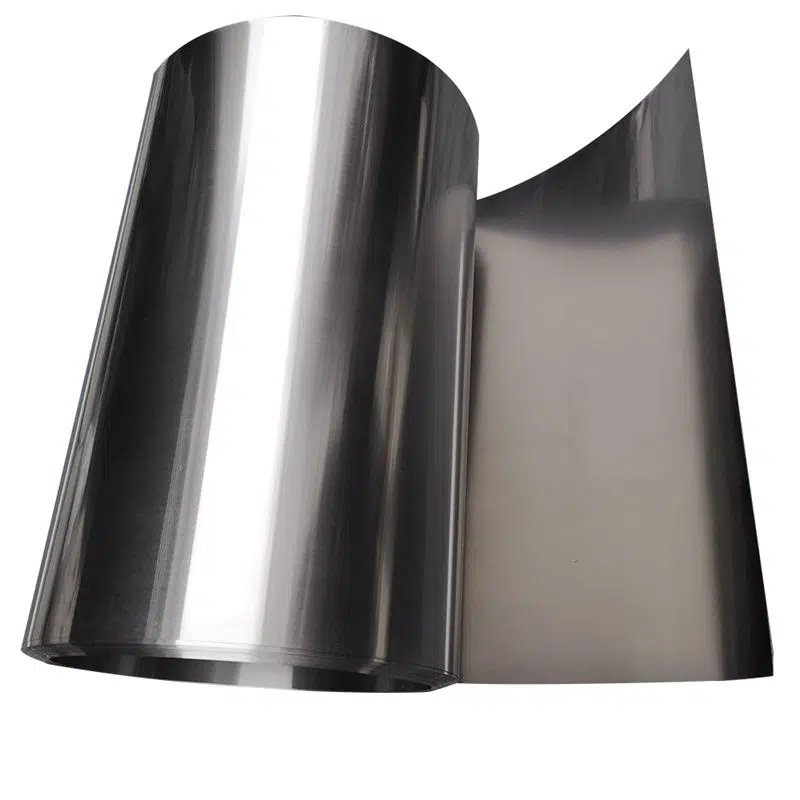

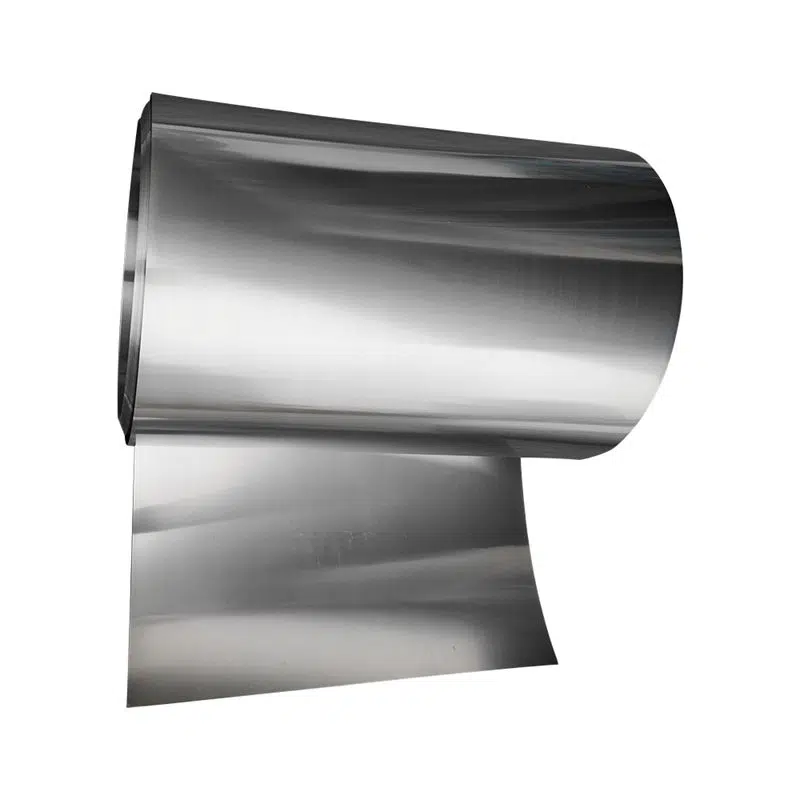

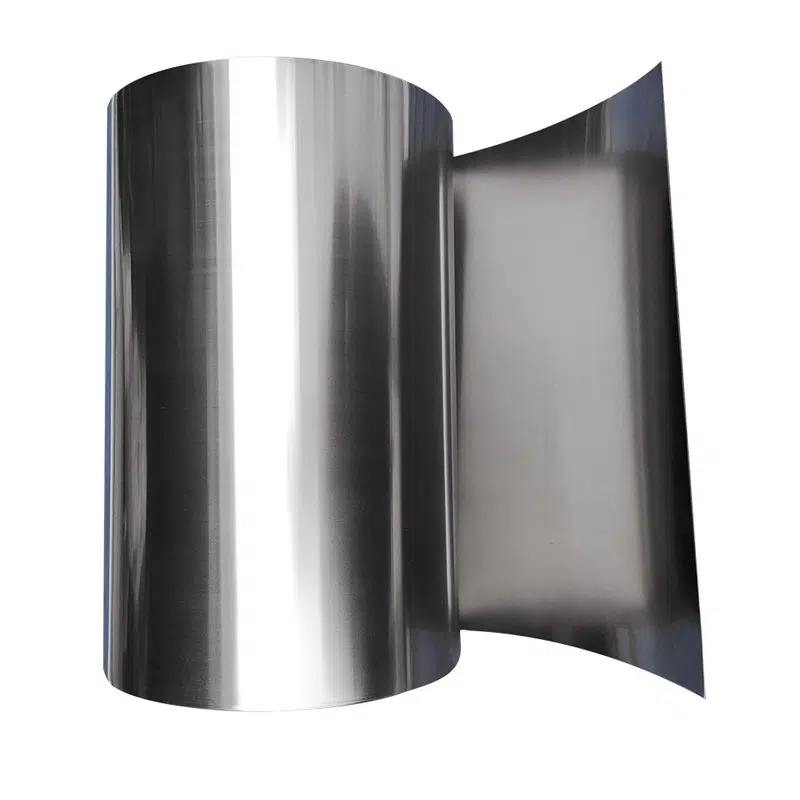

Titanium Sheet Pure Titanium Foil
مقدمة
The characteristics of titanium materials: low density, high specific strength, corrosion resistance, good heat resistance, good low temperature resistance, strong damping performance, non-magnetic, tensile strength close to its yield strength, good heat transfer performance, elastic modulus Low, suction performance;
Titanium applications: aerospace, petrochemical, shipbuilding, automobiles, machinery, accessories, medicine and other industries.
| Product name | Titanium foil/titanium strip |
| قياسي | ASTM B265 ASTM F67 |
| المواد | Gr1,Gr2,Gr3,Gr4,Gr5,Gr7, 6AL4V Eli, GR9, GR12, GR23 |
| TB3, TB6, TC4, TC6, TC11, TC17, TC18 | |
| السماكة | 0.005mm min |
| العرض | 30~210mm |
| الطول | As the request |
| نموذج | Single strip, in coil, or on spool. Slitting service available |
| Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
| technology | hot forging ~ hot rolled ~ machining |
| Feature | Grade 1: Pure Titanium, relatively low strength and high ductility. |
| Grade 2:The pure titanium most used. The best combination of strength,ductility
and weldability. |
|
| Grade 3:High strength Titanium, used for Matrix-plates in shell and tube heat
exchangers. |
|
| Grade 5:The most manufactured titanium alloy. Exceedingly high strength. high
heat resistance. |
|
| Grade 7: Superior corrosion resistance in reducing and oxidizing environments. | |
| Grade 9: Very high strength and corrosion resistance. | |
| Grade 12:Better heat resistance than pure Titanium. Applications as for Grade 7
and Grade 11. |
|
| Grade 23: Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy
for surgical implant application. |
|
| التطبيق | Marine,Airframes,Gas Turbine Engines , Heat exchangers ,Condensers,Desalination plant,Dental alloys,Pulp and paper, Centrifuges, Springs ,Sporting equipment,Automotive ,Seawater piping ,Medical implants ,Electrochemistry,Steam turbines ,Food and pharmaceutical industry, Oil refining and gas industry, Jewellery, architecture, domestic appliances |
