Produktbeschreibung
Platinum Sheets Electrode are constructed from platinum, which is one of the platinum group metals and has a melting point of 1769°C, making it one of the refractory metals. It is soft and can be forged, rolled and drawn into rods, wires, sheets, tubes and wires. Chemical properties are stable at high temperatures (until the melting point is not easy to be oxidized; At room temperature, it does not react with almost all chemical reagents except aqua regia. Among all easily machined materials, platinum and its alloys are resistant to corrosion. Platinum also has stable resistance, resistance temperature coefficient and good thermoelectric properties. It is mainly used in the chemical industry of electrical instruments and the production of precision alloys.
|
Produktname
|
Platinum electrode
|
|
Reinheit
|
99.99%
|
|
Spezifikationen
|
5*5-30*30
|
|
Material
|
Pt+Ptfe
|
|
Components
|

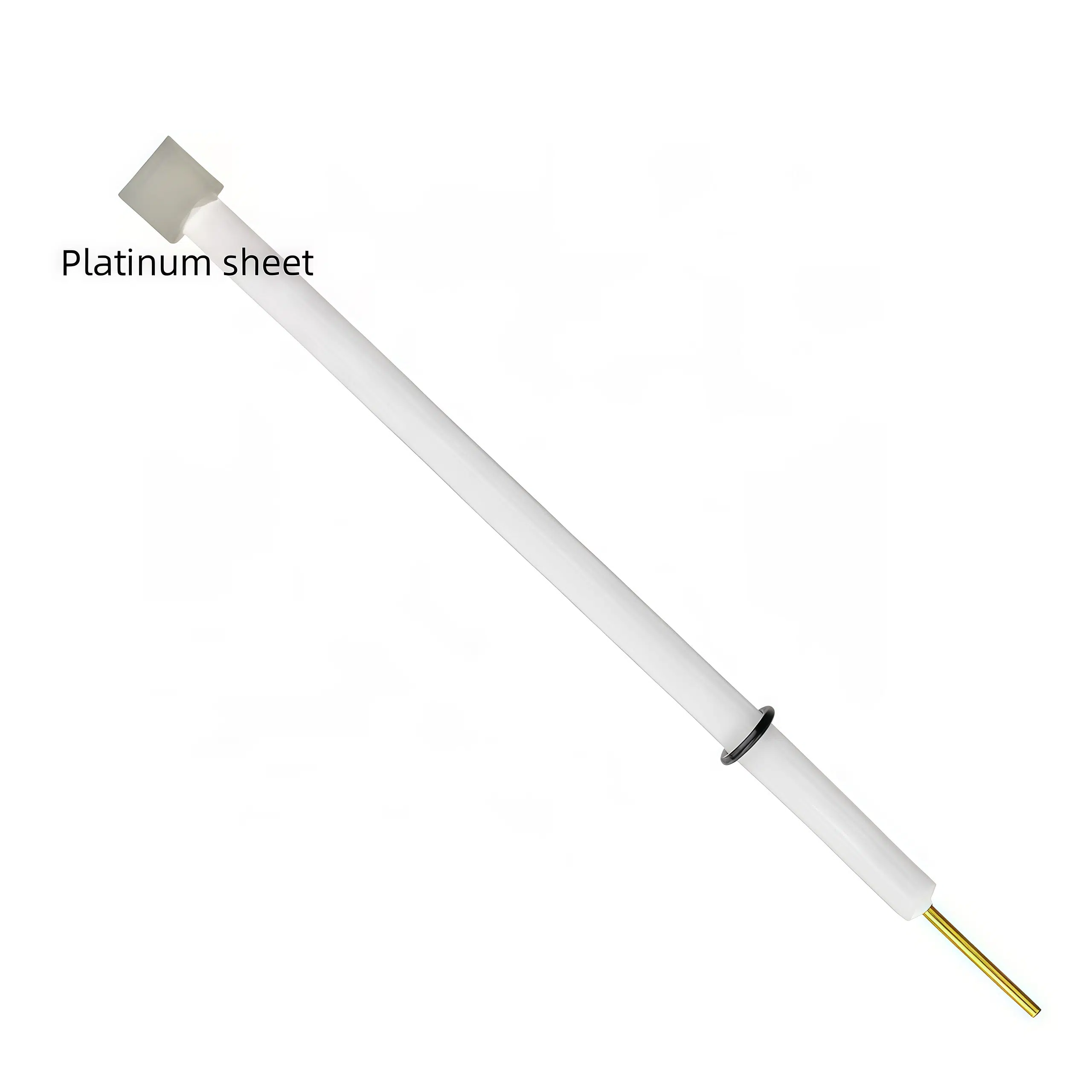

Platinum sheet, PTFE rod, terminal post, sealing ring
|
Spezifikation
|
Model
|
Platinum plate size(mm)
|
Electrode rod material(mm)
|
Electrode rod size (mm)
|
Terminal post (mm)
|
|
PTP01
|
5*5*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP02
|
5*5*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP03
|
10*10*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP04
|
10*10*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP05
|
10*15*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP06
|
10*15*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP07
|
10*20*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP08
|
10*20*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP09
|
15*15*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP10
|
15*15*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP11
|
20*20*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP12
|
20*20*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP13
|
25*25*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP14
|
25*25*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP15
|
30*30*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP16
|
30*30*0.2
|
PTFE
|
6*80
|
2*15
|
|
PTP17
|
40*40*0.1
|
PTFE
|
6*80
|
2*15
|
|
PTP18
|
40*40*0.2
|
PTFE
|
6*80
|
2*15
|
