Produktbeschreibung

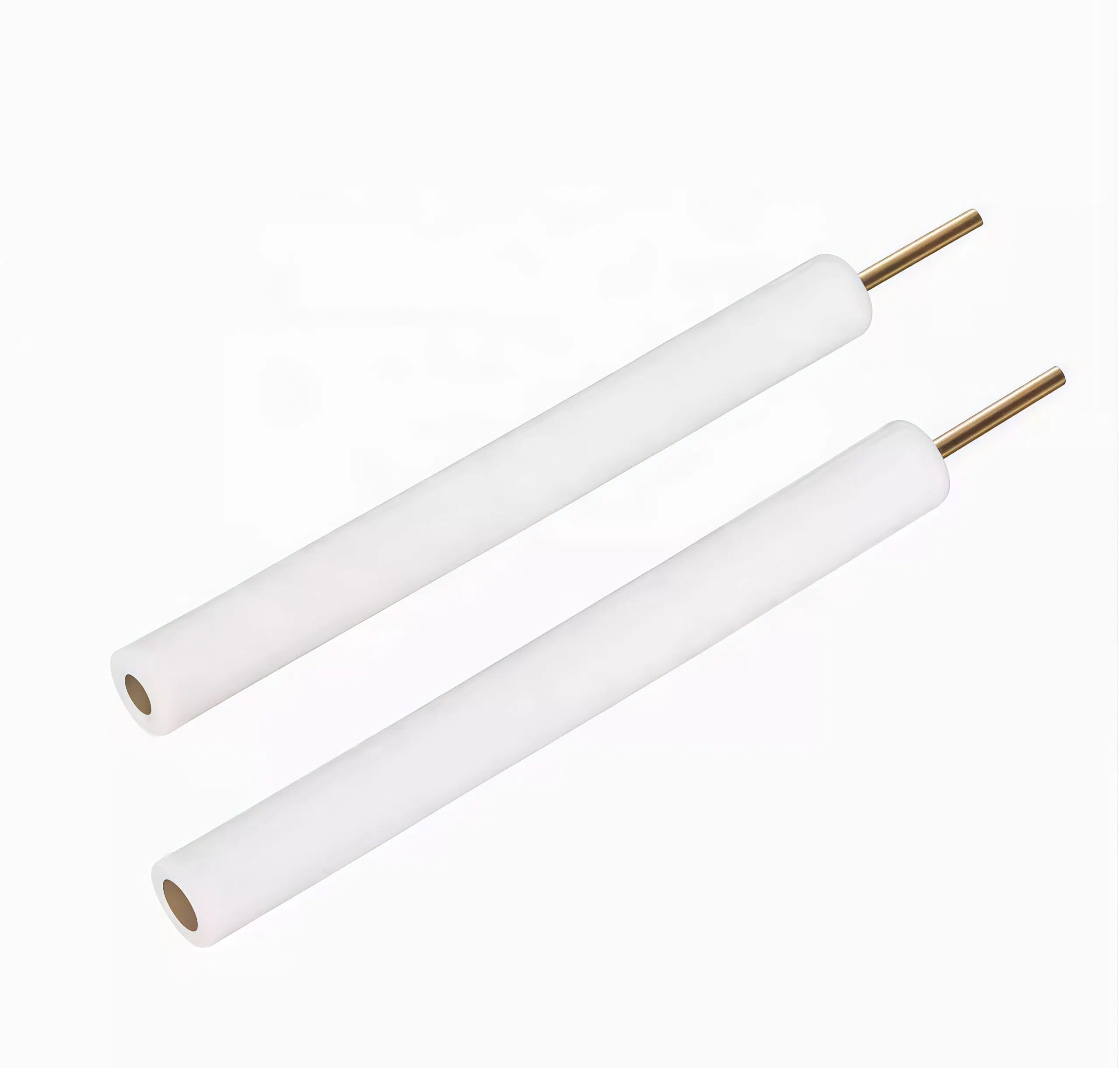

Gold Disk Working Electrode is made with a high-purity gold disk embedded in an insulating electrode body. The exposed gold surface acts as the active working electrode area, while the surrounding insulating material helps define a precise reaction area.
Gold has excellent electrical conductivity, stable electrochemical properties, and strong surface modification capability. It is widely used in electrochemical sensors, biosensors, self-assembled monolayers, redox reaction studies, catalytic research, and analytical chemistry.
The electrode is available in different disk diameters from 1 mm to 6 mm, allowing users to choose the appropriate working area according to experimental current, sensitivity, and test requirements.
Key Features
| Artikel | Description |
|---|---|
| Product Type | Electrochemical Working Electrode |
| Electrode Material | Gold / Au |
| Active Surface | Gold disk |
| Disk Diameter | 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm |
| Electrode Body | PTFE / PEEK / glass / epoxy body available |
| Anwendung | Electrochemical testing and analysis |
| Oberfläche | Polished gold surface |
| Connection | Banana plug / copper rod / custom connector |
| Customization | Diameter, length, body material, connector available |
Available Gold Disk Diameters
| Durchmesser | Approx. Active Area |
|---|---|
| 1 mm | 0.00785 cm² |
| 2 mm | 0.0314 cm² |
| 3 mm | 0.0707 cm² |
| 4 mm | 0.1256 cm² |
| 5 mm | 0.1963 cm² |
| 6 mm | 0.2827 cm² |
Main Advantages
- High-purity gold active surface
- Excellent electrical conductivity
- Stable electrochemical performance
- Smooth and polishable disk surface
- Suitable for repeated electrochemical testing
- Precise working electrode area
- Compatible with three-electrode systems
- Available in 1–6 mm disk diameters
- Suitable for surface modification and sensor research
- Custom electrode design available
Applications
| Anwendung | Description |
|---|---|
| Cyclic Voltammetry | Used as working electrode for CV testing |
| Electrochemical Analysis | Suitable for redox reaction analysis |
| Electrochemical Sensors | Commonly used in sensor and biosensor research |
| Surface Modification | Suitable for SAMs and functional coating studies |
| Electrocatalysis | Used for catalytic reaction evaluation |
| Analytical Chemistry | Used in laboratory electrochemical measurement |
| Corrosion Testing | Used in selected electrochemical corrosion studies |
| Battery Research | Used for material electrochemical behavior testing |
| Fuel Cell Research | Suitable for catalyst and electrode reaction studies |
