Highly Porous Open Cell GOLD FOAM
Introduction
- GOLD FOAM is a lightweight metallic gold foam material designed for DIY craft projects, model making, event decoration and visual merchandising. The foam blocks feature an eye‑catching gold finish, are easy to cut, carve and glue, and can be shaped with a craft knife, hot wire cutter or basic hand tools. Ideal for creating 3D letters, display bases, signage, props and background elements with a premium gold look.
- Perfect for weddings, parties, retail window displays, stage sets and photo backdrops, GOLD FOAM offers a bright, reflective gold surface that stands out under natural or artificial light. The material is light yet stable, easy to paint or combine with glitter, vinyl, fabric and other decorative elements, helping designers, event planners and crafters quickly build custom gold‑themed decorations and professional‑looking displays.
Specifications
| Type | Open cell |
| Purity | Au ≥ 99.99% |
| Form | Sheet, roll or custom blocks, depending on size & thickness |
| Cell Size (PPI) | 10–100 PPI, or customized as per request |
| Thickness | Standard: 0.10–20 mm; other thicknesses can be customized |
| Size & Shape | Standard sheets: 100 × 100 mm / 200 × 300 mm; can be cut or made into different shapes as per request |
| Porosity | 70% – 98%, depending on specification |
| Open Cell Rate | ≥ 95% |
| Volume Density | 0.3–1.2 g/cm³, adjustable as per request |
| Surface Density | 200–5000 g/m², as per request |
| Thermal Conductivity (Effective) | Typically 1–10 W/m·K (depends on porosity and structure; bulk gold ~318 W/m·K) |
| Mechanical Strength (Compressive) | Typically 1–5 MPa (depends on density and pore size) |
| Average Tensile Strength (N/20mm) | Vertical ≥ 20, horizontal ≥ 15 (typical values, can be adjusted according to actual product) |
| Temperature Resistance (Inert Atmosphere / Vacuum) | ≥ 500 ℃ (gold melting point 1064 ℃; effective use temperature depends on application and environment) |
| Appearance | Metallic gold, uniform color, without obvious defects such as black spots, blind holes, through holes, cracks, etc. |
| Chemical Composition | Au ≥ 99.99%; impurities (Ag, Cu, Ni, etc.) each typically ≤ 0.01% |
| Electrical Conductivity | High electrical conductivity; bulk gold resistivity ~2.4 × 10⁻⁸ Ω·m (effective value depends on porosity and foam structure) |
| Corrosion Resistance | Excellent resistance to oxidation and most acids; not suitable for aqua regia and certain strong complexing agents |
| Flexibility | Good flexibility for thin sheets; can be bent and slightly compressed without breaking (depends on thickness & PPI) |
| Elongation Rate (%) | Vertical ≥ 3, horizontal ≥ 5 (typical for thin, high‑porosity foam) |

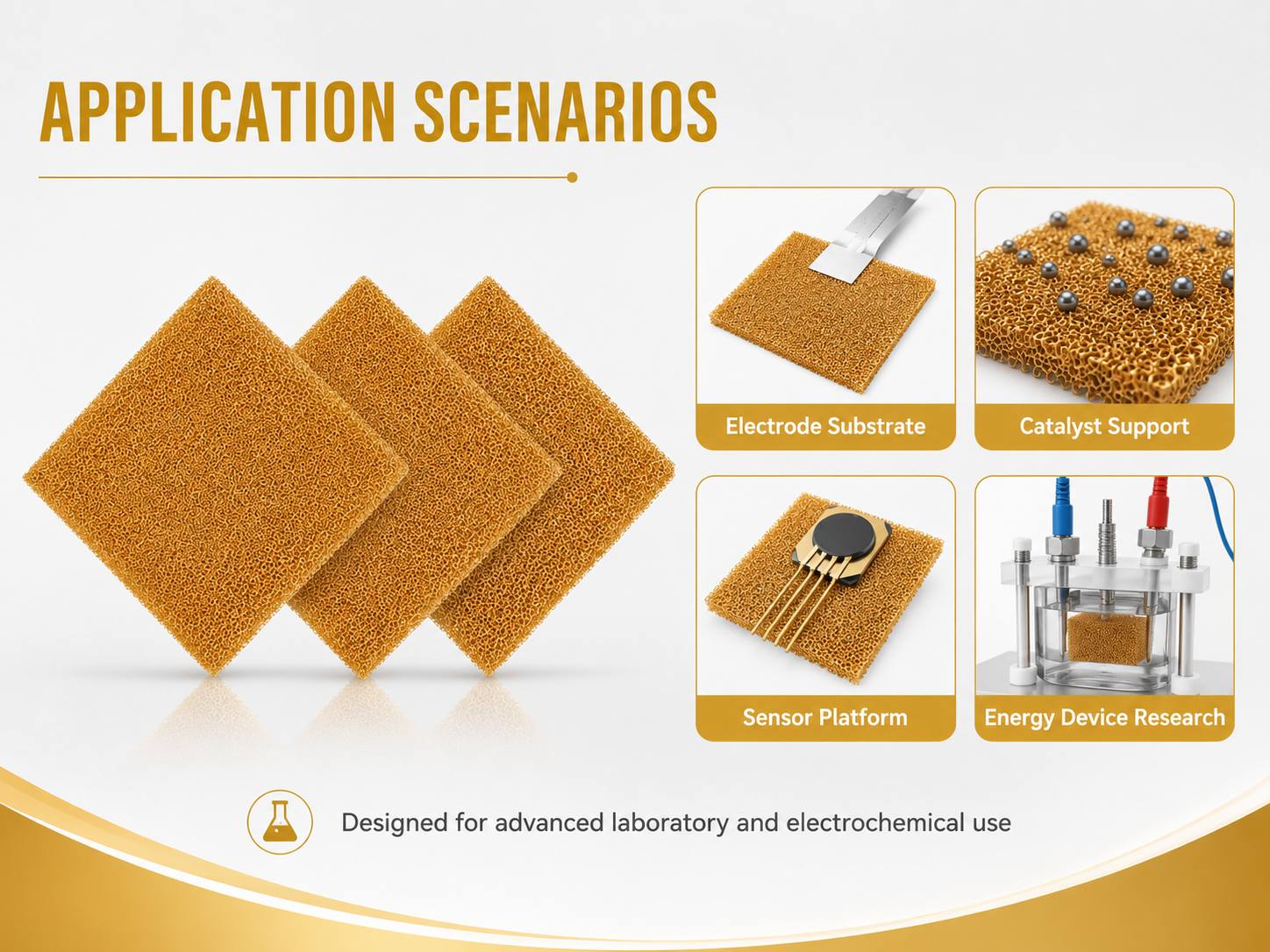

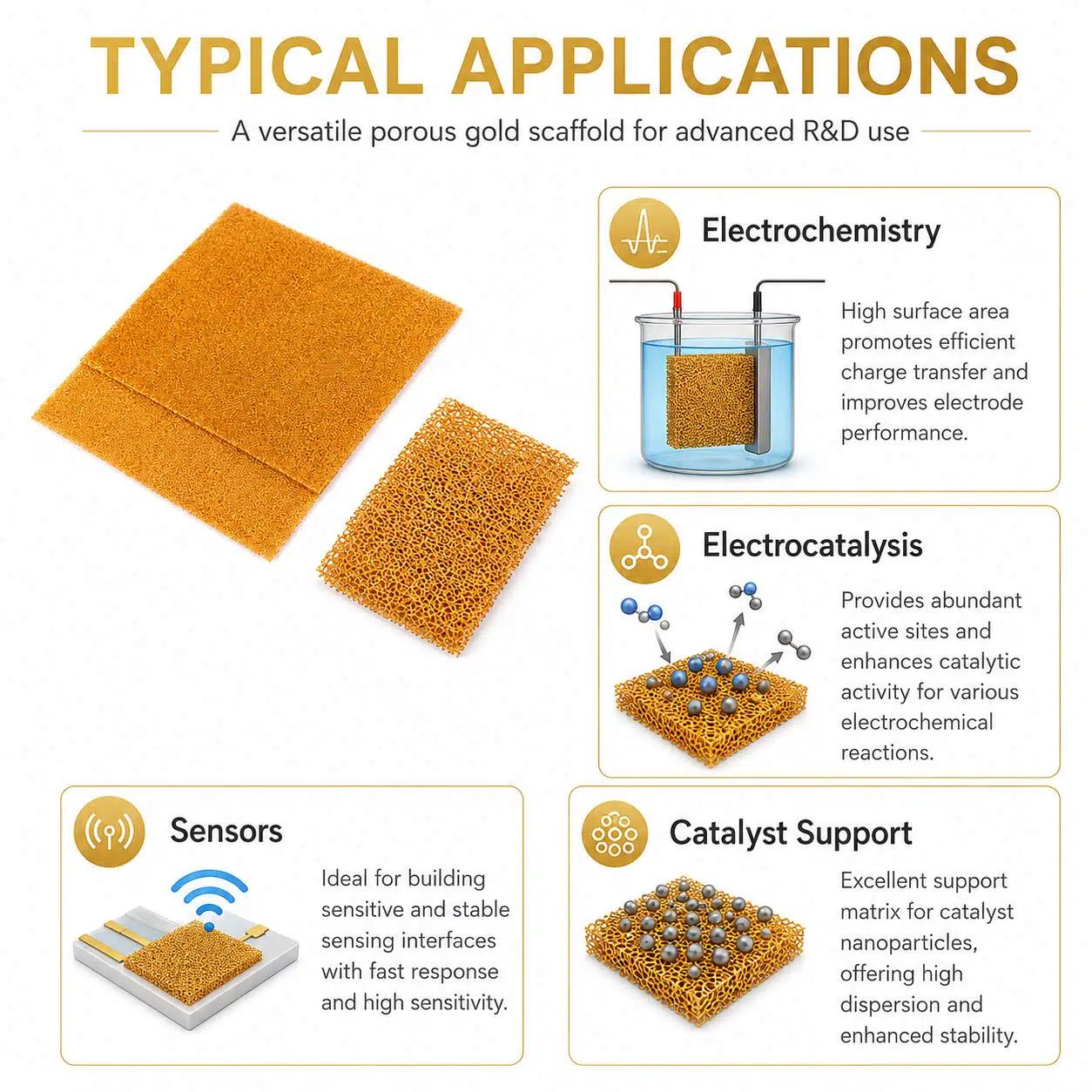

| Applications | Electrocatalyst support, battery electrodes, fuel cell current collectors, EMI shielding, filtration, high‑end decorative and luxury crafts |
Dimension (Thickness* Length*Width)
| 0.08mm*300mm*200mm | 0.2mm*200mm*300mm | 0.3mm*200mm*300mm |
| 0.5mm*200mm*300mm | 0.7mm*200mm*300mm | 0.9mm*200mm*300mm |
| 1.0mm*200mm*300mm | 1.3mm*200mm*300mm | 1.5mm*200mm*300mm |
| 1.7mm*200mm*300mm | 2.0mm*200mm*300mm | 5mm*200mm*300mm |
| 10mm*200mm*300mm | 30mm*200mm*300mm | The size can be customized |

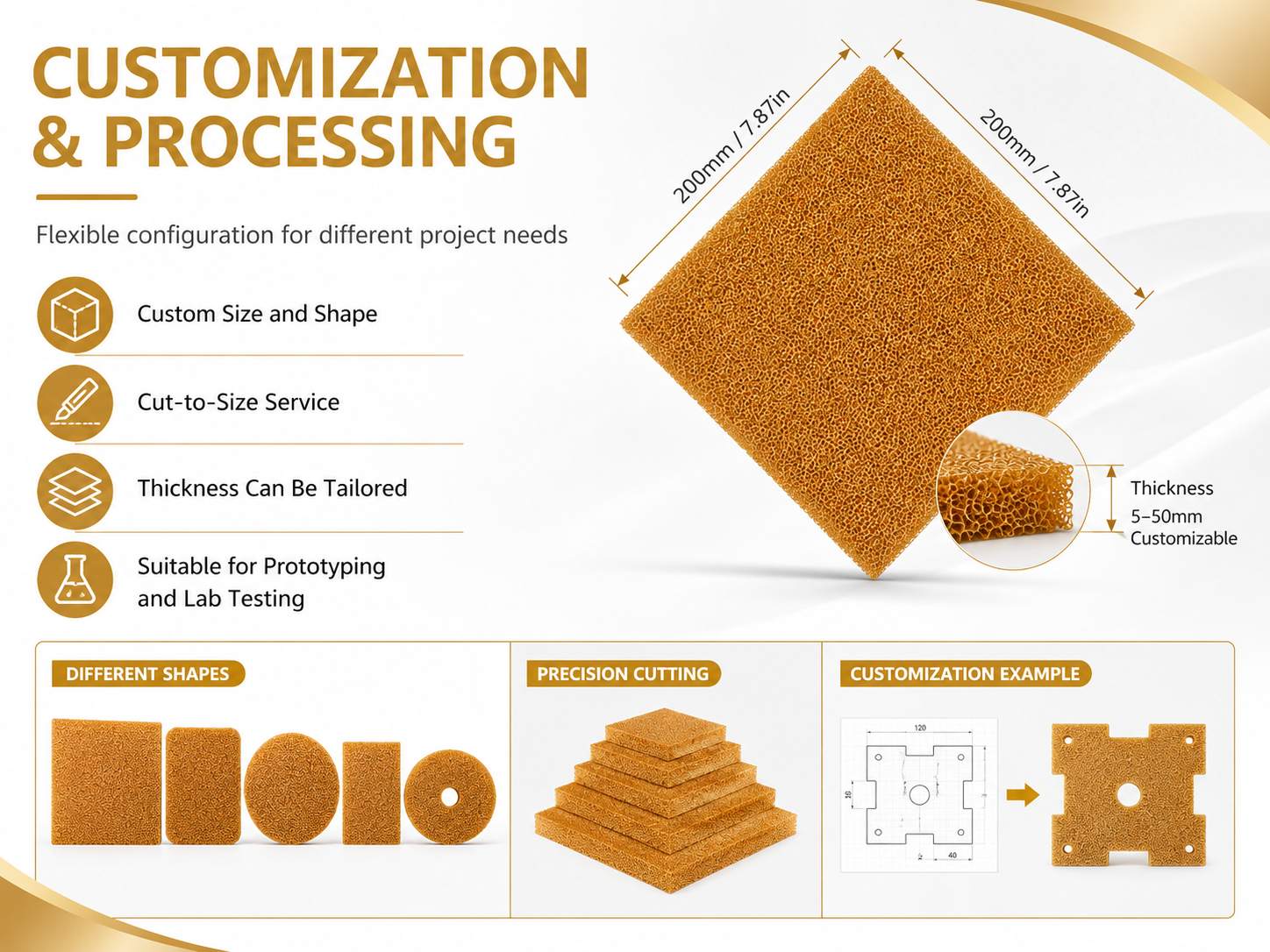

To customize various metal foams, please click the picture below for details：
 |
 |
 |
 |
 |
 |
 |
 |
