Custom Platinum Electrodes
Introduction

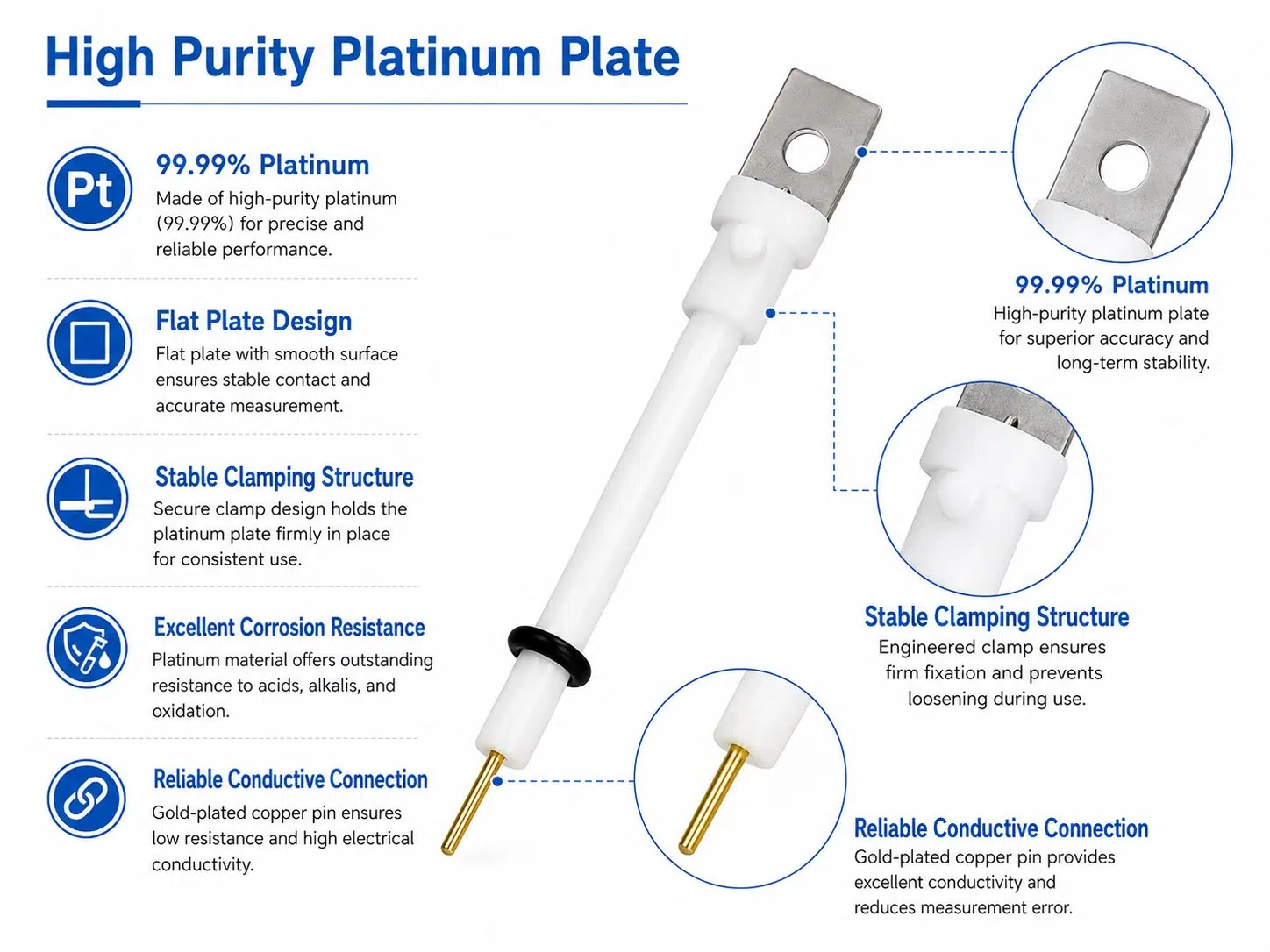

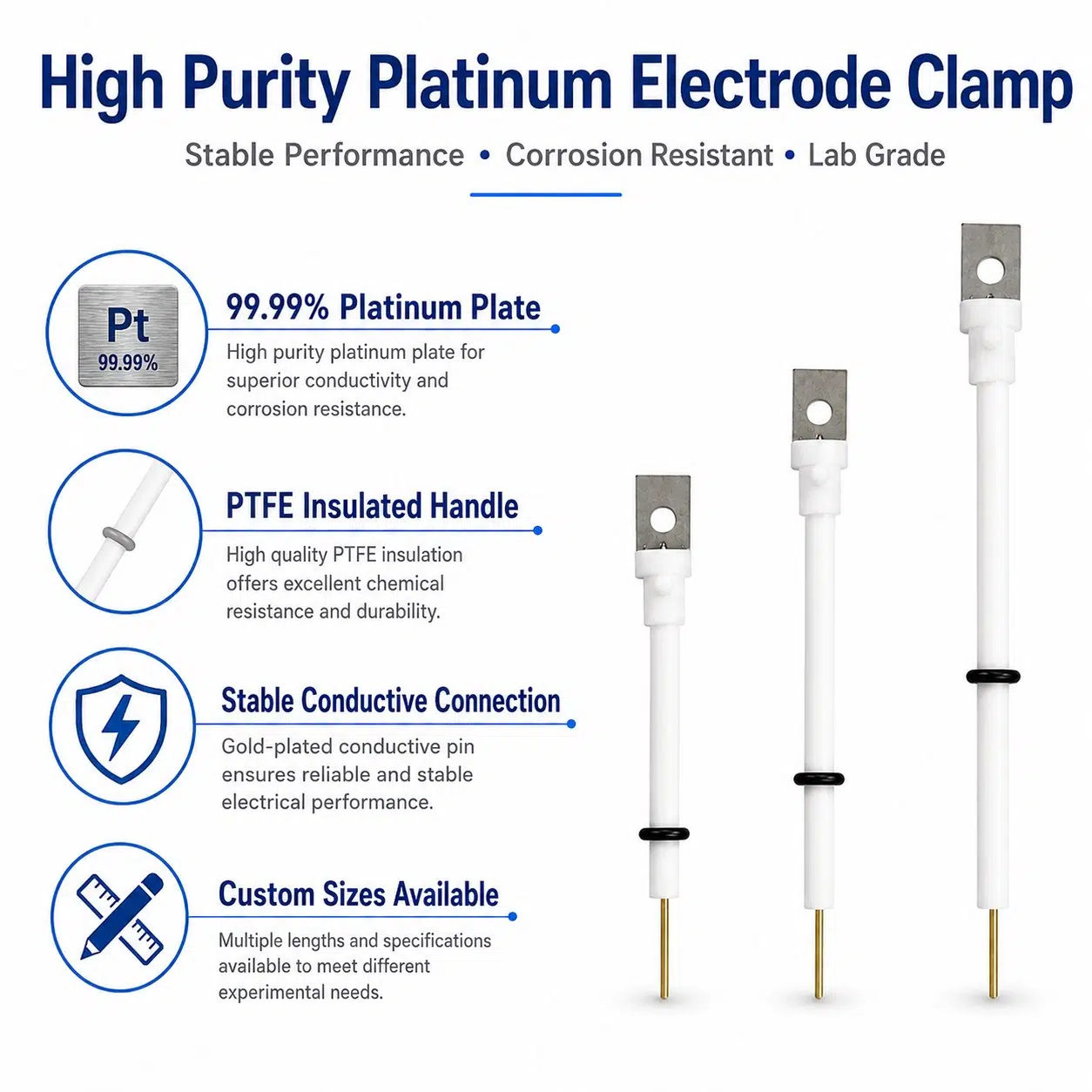

- Designed for high-precision electrochemical research, our high-purity platinum electrode clamp ensures a reliable, contamination-free electrical connection for your test samples. The contact portion is crafted from ≥99.99% pure platinum, which effectively eliminates side reactions and secondary catalytic effects that occur with standard stainless steel or copper clips. This makes it an indispensable tool for sensitive experiments such as Cyclic Voltammetry (CV), Electrochemical Impedance Spectroscopy (EIS), and corrosion studies in aggressive acidic or alkaline electrolytes. By providing a stable and low-resistance interface, this clamp guarantees the integrity of your data and the reproducibility of your research results.
-
Fully Customizable Design for Versatile Lab Applications We understand that electrochemical cells come in various sizes and configurations, which is why our platinum clamps are fully customizable. The standard body is made of high-grade PTFE (Teflon) or PEEK, providing excellent insulation and resistance to most organic solvents and corrosive chemicals. You can customize the rod length, diameter, and the jaw opening width to accommodate different sample thicknesses, from ultra-thin foils to multi-layered membranes. Whether you are testing fuel cell catalysts, battery electrodes, or bio-sensors, our engineering team can tailor the connector type and clamping mechanism to integrate seamlessly with your existing potentiostat and glassware setup.
Specifications
| Type | Platinum Sheet / Plate / Disc / Strip / Pt Electrode |
| Material Grade | High‑purity Platinum (e.g., ≥Pt 99.95%, 99.99%, 99.999% electronic/analytical grade); specialized Pt alloys (e.g., Pt‑Ir, Pt‑Rh, Pt‑Au) available on request |
| Purity | Typically ≥99.95%, ≥99.99%, or ≥99.999% Pt (ultra‑high purity for highly stable electrochemical behavior, low background current, and long‑term durability) |
| Form | Flat sheet, plate, circular disc, strip, ribbon, or ultra‑thin foil; supplied as single pieces, matched sets, or bulk lots for laboratory and pilot‑scale use |
| Thickness | Customizable (typically 0.01 mm – 5 mm; ultra‑thin foils available for micro‑electrode, MEMS, and microfluidic sensor applications) |
| Size & Shape | Fully customizable dimensions; precision‑cut rectangles, squares, round discs, rings, grids, and complex CNC‑machined geometries according to drawings or CAD files |
| Surface Finish | Mill finish, bright/mirror‑polished, brushed, matte, sanded, or micro‑textured to optimize electrochemical active area, wetting properties, and coating adhesion |
| Surface Treatment / Coating | Bare platinum (standard), chemically cleaned/degreased, electrochemically polished, activated surfaces, or functionalized (e.g., catalyst layers, Pt black) for fuel cells, sensors, and advanced electrochemistry |
| Hole / Slot / Mesh Design | Precision drilled or laser‑cut holes, mounting slots, perforated patterns, or platinum mesh/expanded structures to enhance electrolyte access, gas diffusion, and mass transfer |
| Corrosion Performance | Exceptional chemical inertness and corrosion resistance in most acidic, neutral, and alkaline electrolytes; ideal as a stable working, counter, or inert electrode in harsh electrochemical environments |
| Mechanical Strength | High‑temperature stability and good mechanical strength; suitable for cutting, bending, spot‑welding, and fine machining; easy to join with wires, tabs, and conductive leads |
| Operating Temperature | Suitable from low temperatures up to very high‑temperature electrochemical and catalytic applications; melting point approx. 1768 °C (recommended operation well below melting point) |
| Surface Flatness | Tight control of thickness tolerance, roughness, and flatness to ensure uniform contact resistance, highly even current distribution, and reproducible electrochemical response |

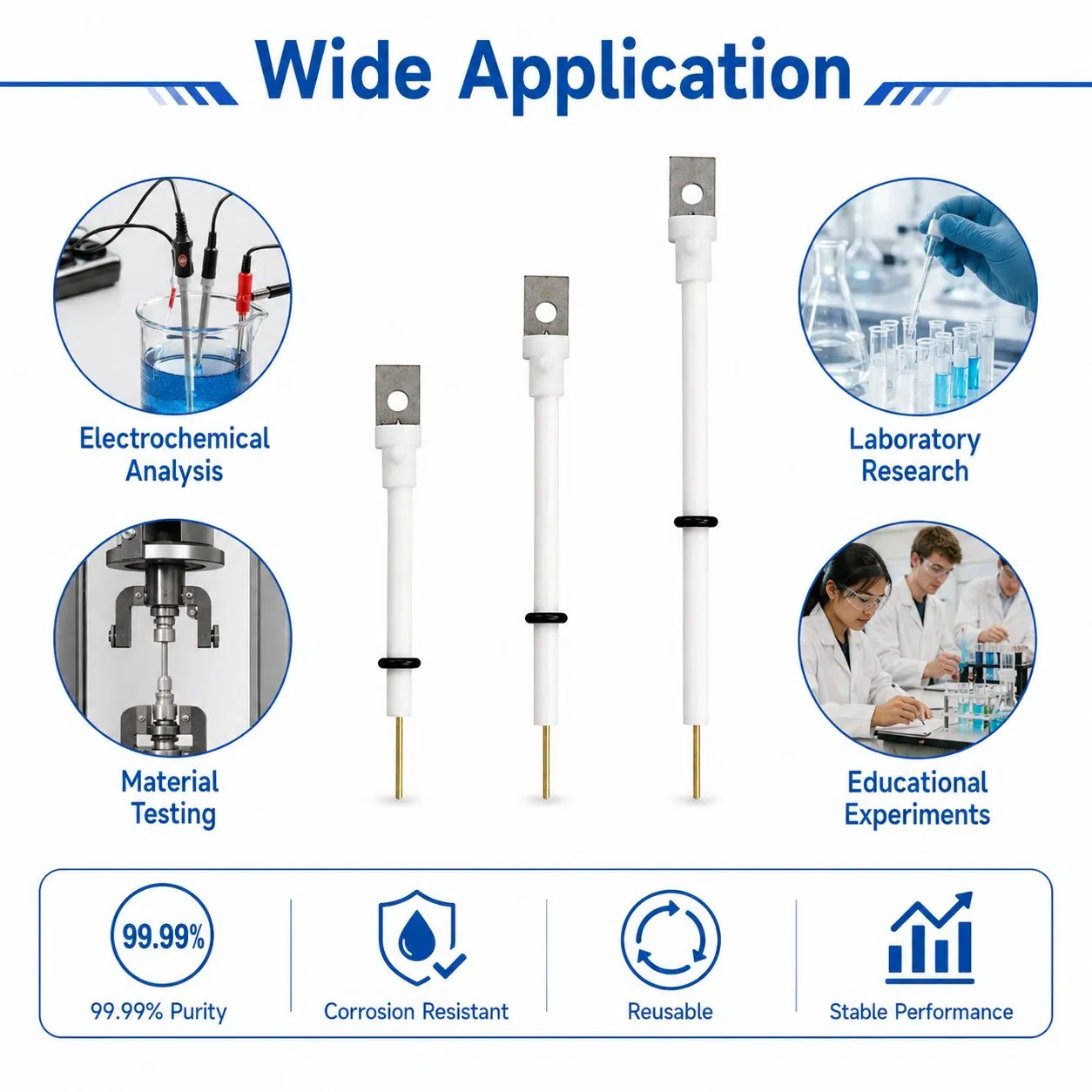

| Application Range | Electrochemical research (CV, LSV, EIS), fuel cell and electrolyzer electrodes, electrocatalysis and hydrogen evolution/oxygen reduction studies, corrosion and passivation tests, reference and counter electrodes, biosensors, medical and neural interfaces, high‑temperature catalysis, and advanced materials research |
| Customization | Full support for laser/water‑jet cutting, precision stamping, CNC machining, micro‑patterning, tab/lead welding, surface activation/functionalization, assembly into electrode holders, and clean‑room packaging for high‑purity Pt electrodes suitable for demanding R&D and industrial applications |

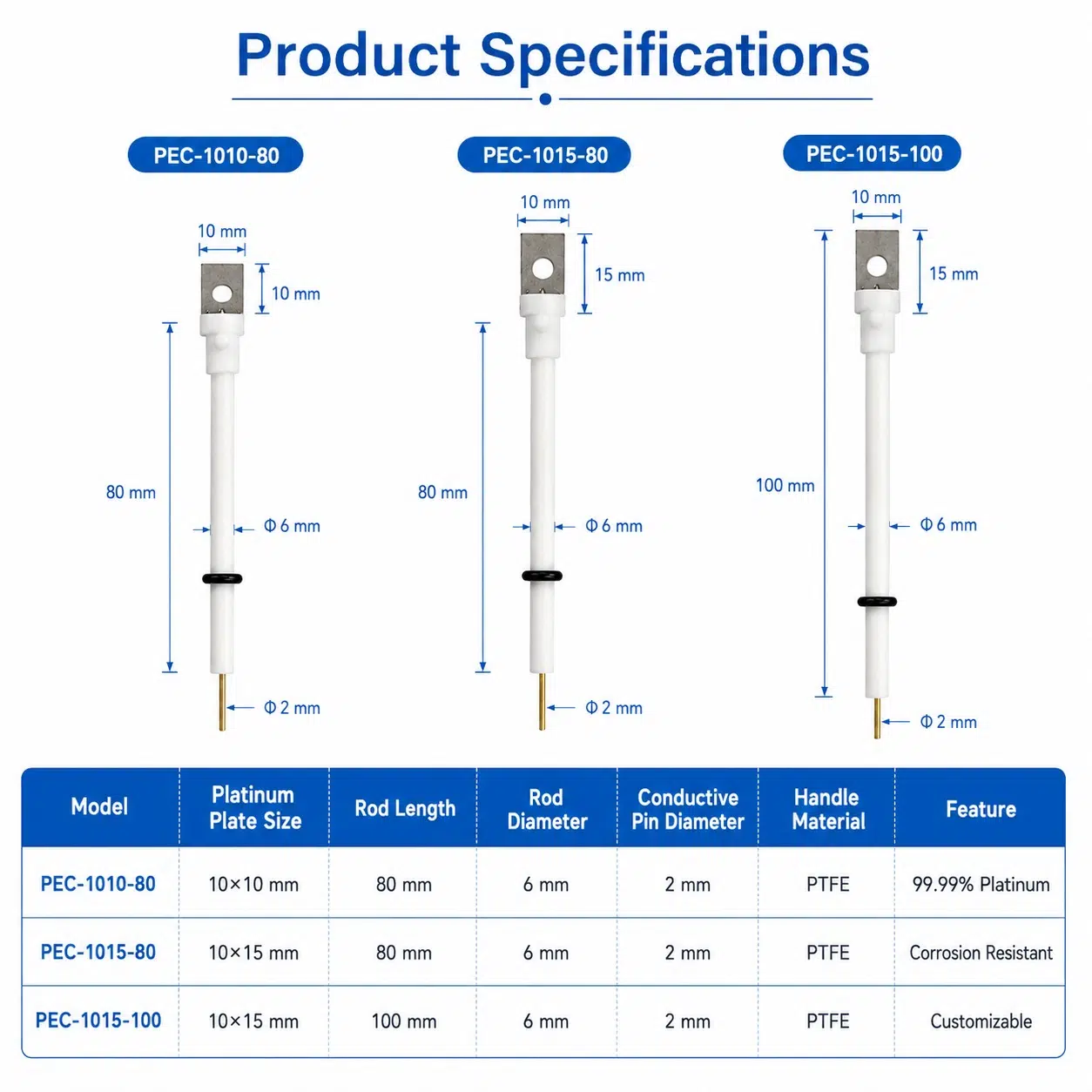

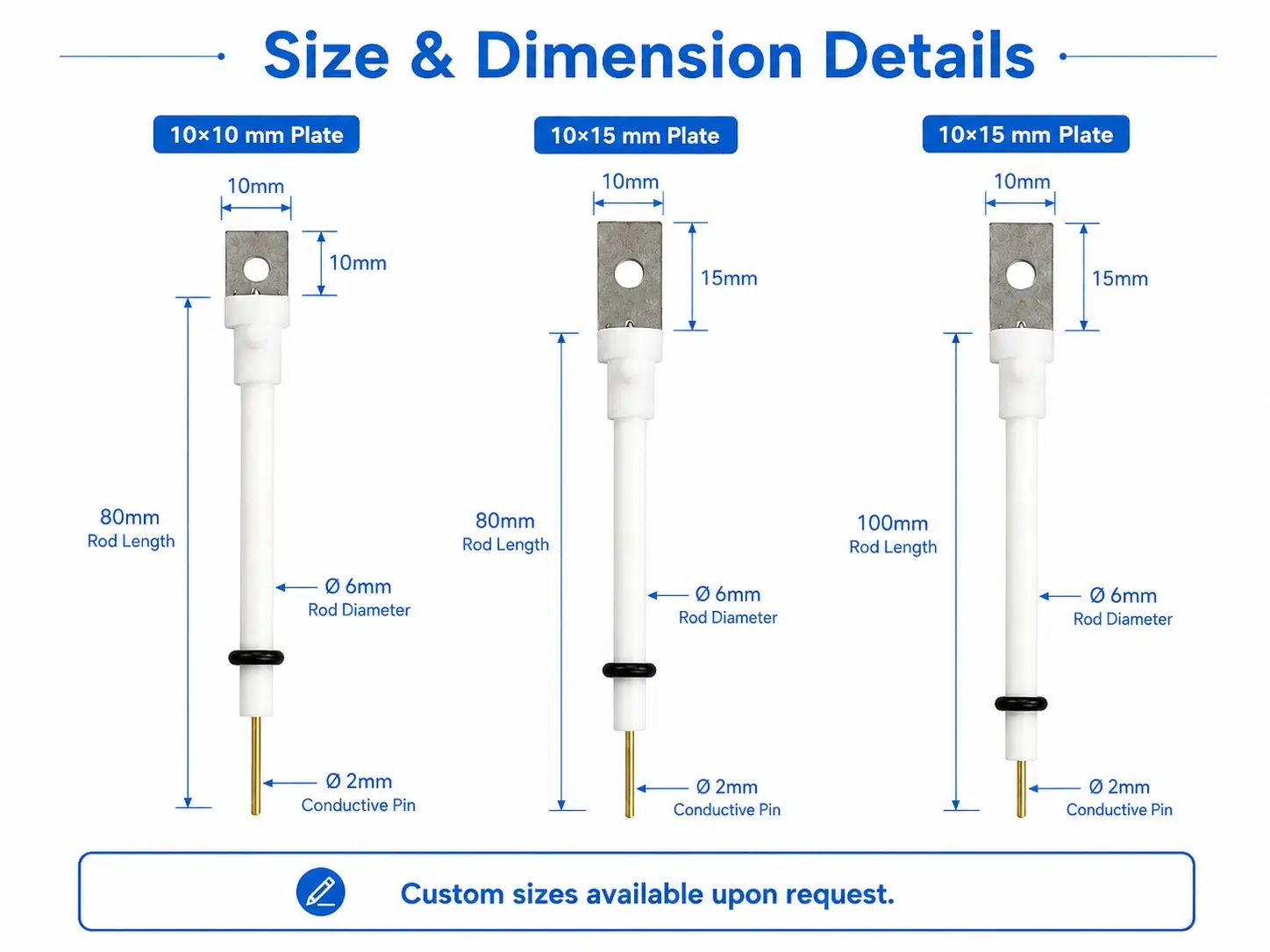

Reference dimensions
| 0.1mm*5mm*10mm | 0.2mm*5mm*10mm | 0.1mm*10mm*20mm |
| 0.2mm*20mm*20mm | 0.3mm*20mm*30mm | 0.1mm*20mm*50mm |
| 0.2mm*30mm*100mm | 0.1to 0.5mm*50mm*50mm | The size can be customized |
To customize various metal electrodes, please click the picture below for details：
 |
 |
 |
 |
 |
 |
 |
 |
