Bendable Metal Nickel Foam Size Can be Customized Nickel Foam Nickel Foam Electrode
Introduction
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.
Usefulness: (Various shapes can be produced)
- Used as the base plate/substrateofpositive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
- Filtration materials of air / oil / smoke etc.
- Porous electrode in Galvano-Chemistry Engineering.
- Elimination of heat.
- Amortization materials.
- Noise-Absorbing and Vibration-Absorbing materials.
- Electromagnetic shielding materials.
- Catalyst carrier.
- Precious metal recovery.
Specifications
| Type | Open cell |
| Purity | > 99.99% |

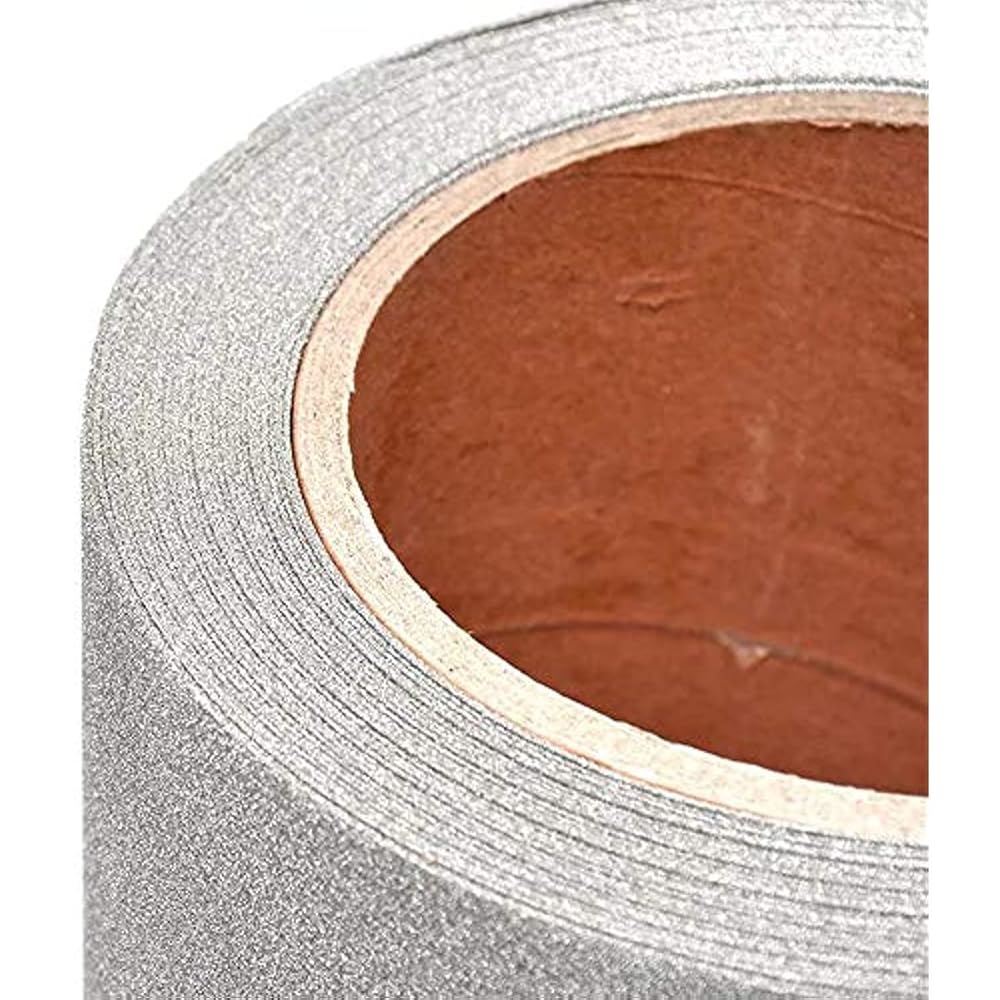

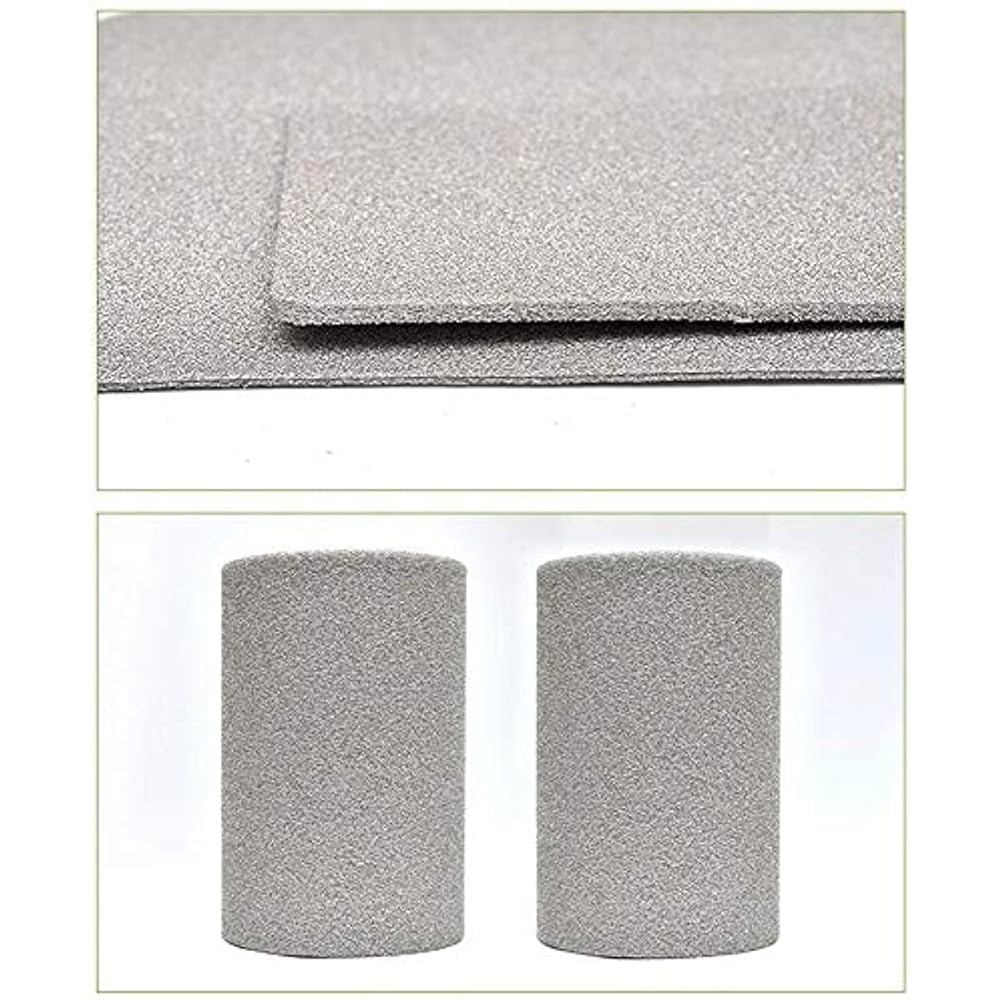

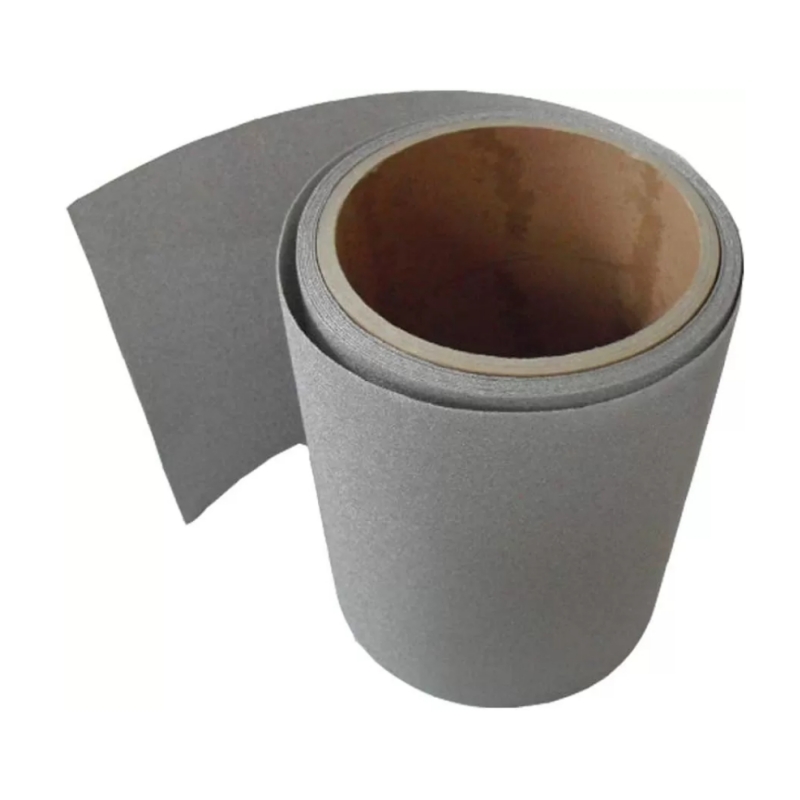

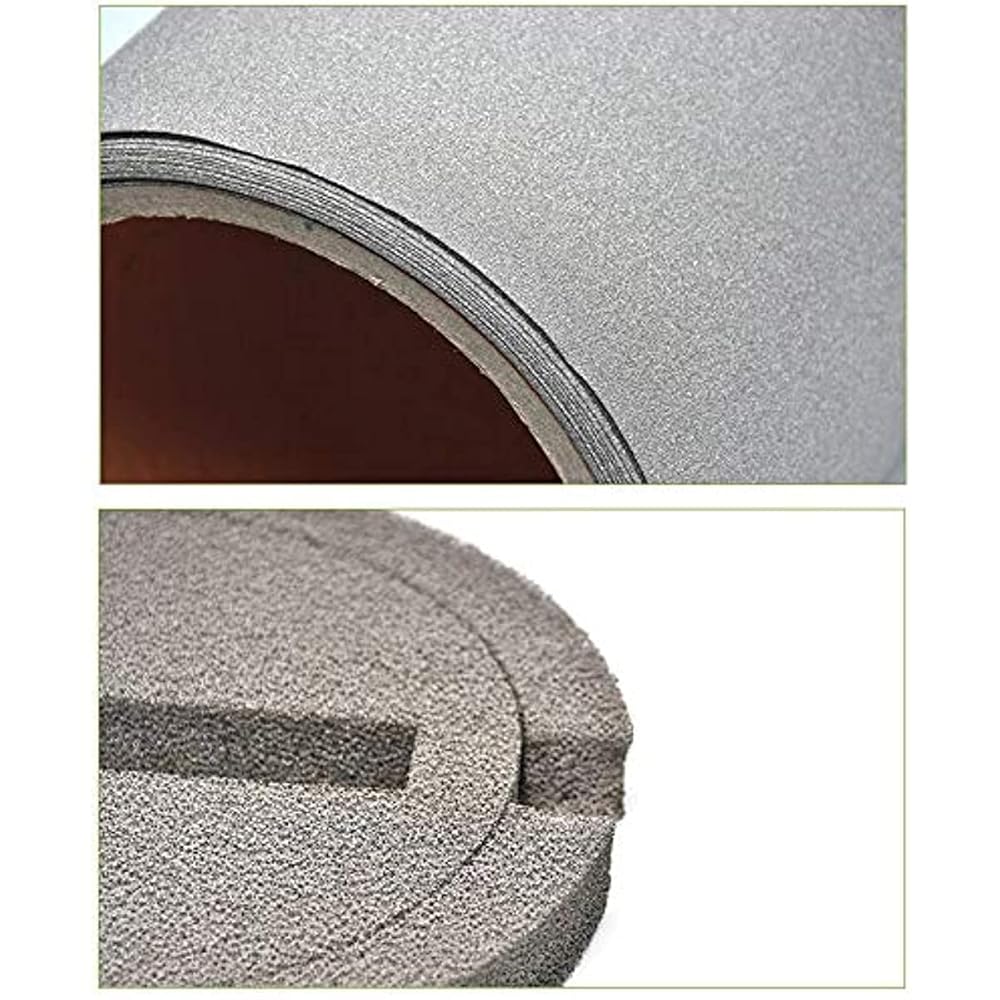

| Form | Sheet or Roll, depending on size & thickness |
| Cell Size (PPI) | 5-1300PPI, as per request |
| Thickness | Standard: 0.08-30mm |
| Size & Shape | Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
| Porosity | 95%-98% |
| Open Cell Rate | ≥98 % |
| Volume Density | >0.1g/cm3, as per request |
| Surface Density | 200-3500 g/m 2, as per request
Standard: 320±20g/m2 |
| Thermal Conductivity (Theoretical) | >3W/M.K |
| Mechanical Strength (Theoretical) | ≥2~7MPa |
| Average Tensile Strength (N/20mm) | Vertical ≥ 30, horizontal ≥ 25 |
| Temperature Resistance (Theoretical) | ≥500℃,as per request |
| Appearance | Silver gray, without defects such as black spots, blind holes, through holes, cracks, etc |
| Chemical Composition | Ni: ≥99.5% Fe≤0.020% C≤0.030% P≤0.010% S≤0.008% Si≤0.005% Cu≤0.010% |
| Shielding Effectiveness | 200KHz |
| 40dB~50dB | |
| Flexibility | Vertical ≥ 5, horizontal ≥ 15 |
| Elongation rate (%) | Vertical ≥ 5, horizontal ≥ 10 |
| Electrical resistivity (m Ω/100 * 10m2) | Vertical ≤ 65, horizontal ≤85 |
Dimension (Thickness* Length*Width)
| 0.08mm*300mm*200mm | 0.2mm*200mm*300mm | 0.3mm*200mm*300mm |
| 0.5mm*200mm*300mm | 0.7mm*200mm*300mm | 0.9mm*200mm*300mm |
| 1.0mm*200mm*300mm | 1.3mm*200mm*300mm | 1.5mm*200mm*300mm |
| 1.7mm*200mm*300mm | 2.0mm*200mm*300mm | 5mm*200mm*300mm |
| 10mm*200mm*300mm | 30mm*200mm*300mm | The size can be customized |
To customize various metal foams, please click the picture below for details：
