High-Precision Disc Filter Cartridges for High Concentration Melt Filtration
Introduction
Product parameter brand: Oqitop
Features: strong filtering ability, adjustable filtering area, large filtering surface and large flow, high filtering accuracy, and can be cleaned and reused.

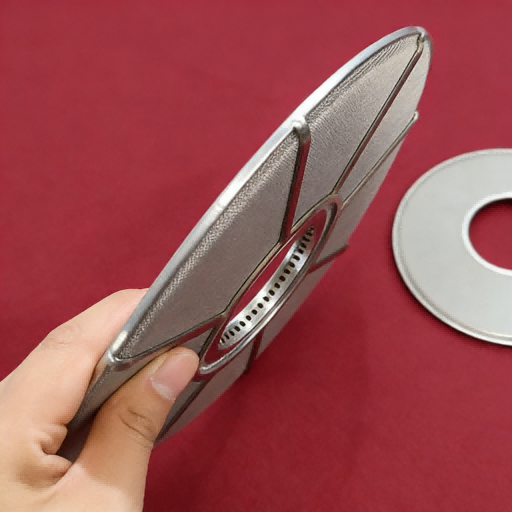

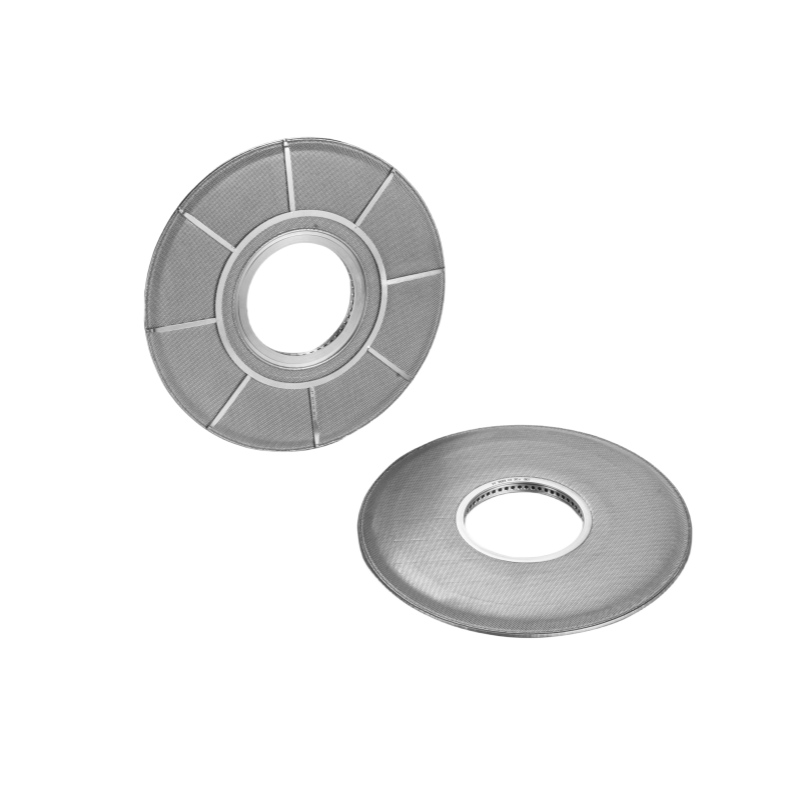

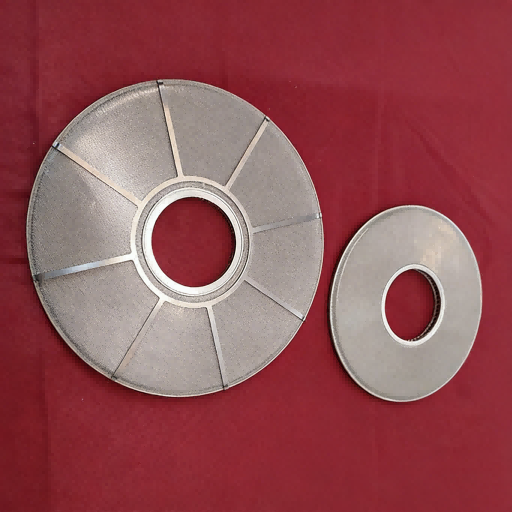

Melt filter disc is also called disc filter element, which is used for the filtration of high viscosity melt. The chip design makes the effective filtering area per cubic meter extremely large, and realizes the effective utilization of space and the miniaturization of the filtering device.

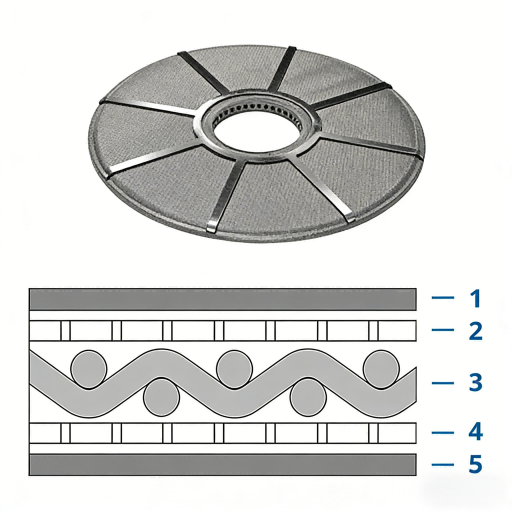

The filter material is made of stainless steel felt or multi-layer stainless steel sintering net. Features: the filter element bears uniform pressure; Stable filtration performance; It can be cleaned repeatedly and has a long service life.
Application area
1. BOPP biaxially oriented polypropylene film
2. BOPA biaxially stretched nylon film
3. BOPET biaxially stretched polyester film
4. High viscosity melt filtration
5. Chemical fiber liquid filtration
Chemical composition analysis
| Product model | Filtering accuracy（um） | Bubble point pressure
(Pa) |
Air permeability
L（min°d㎡）
|
Porosity(%) | Pollutant carrying capacity
(Mg/㎝²) |
Thickness
(mm) |
|||||
| basic value
|
tolerance | basic value
|
tolerance | basic value
|
tolerance | basic value
|
tolerance | basic value
|
tolerance | ||
| SSF5 | 5 | 7000 |
±10% |
30 |
±20% |
75 |
±10% |
2 |
±20% |
103 |
±10% |
| SSF10 | 10 | 3500 | 100 | 75 | 4 | 0.3 | |||||
| SSF15 | 15 | 2300 | 150 | 75 | 6 | 0.35 | |||||
| SSF20 | 20 | 1700 | 250 | 75 | 10 | 0.45 | |||||
| SSF25 | 25 | 1400 | 300 | 75 | 15 | 0.6 | |||||
| SSF30 | 30 | 1100 | 400 | 75 | 15 | 0.6 | |||||
| SSF40 | 40 | 900 | 600 | 75 | 20 | 0.6 | |||||
| SSF60 | 60 | 800 | 1000 | 75 | 30 | 0.6 | |||||
| SSF80 | 80 | 700 | 1300 | 75 | 40 | 0.6 | |||||

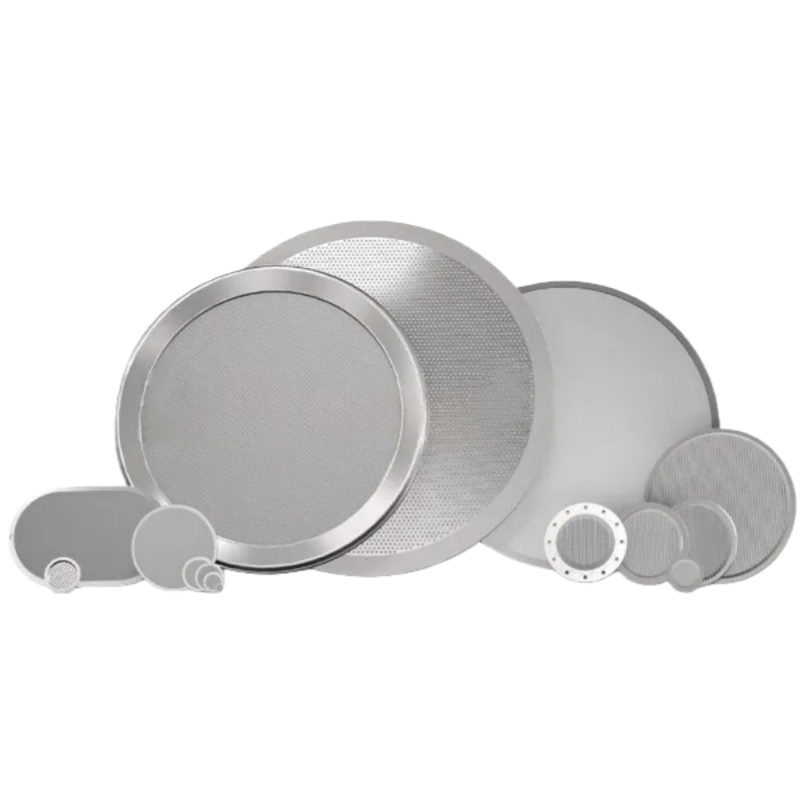

To customize various fiber felt, please click the picture below for details：
 |
 |
 |
 |
 |
 |
