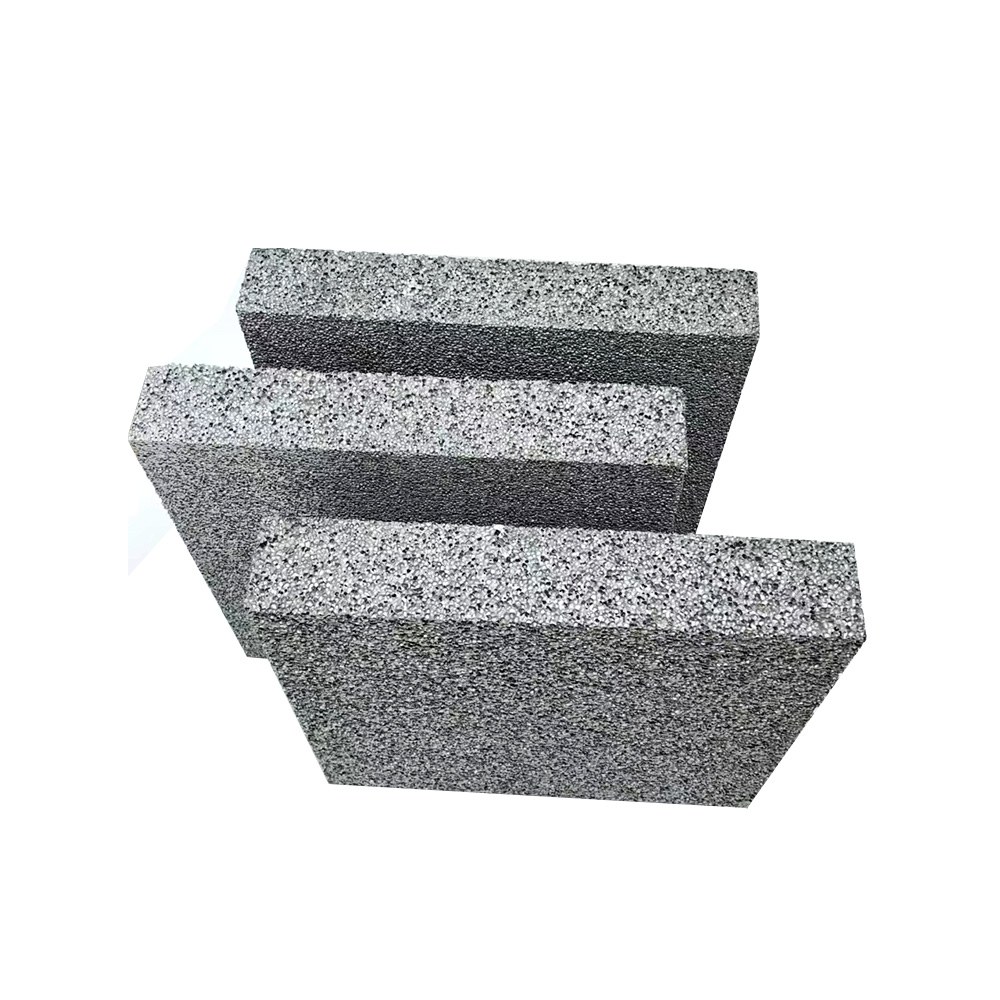

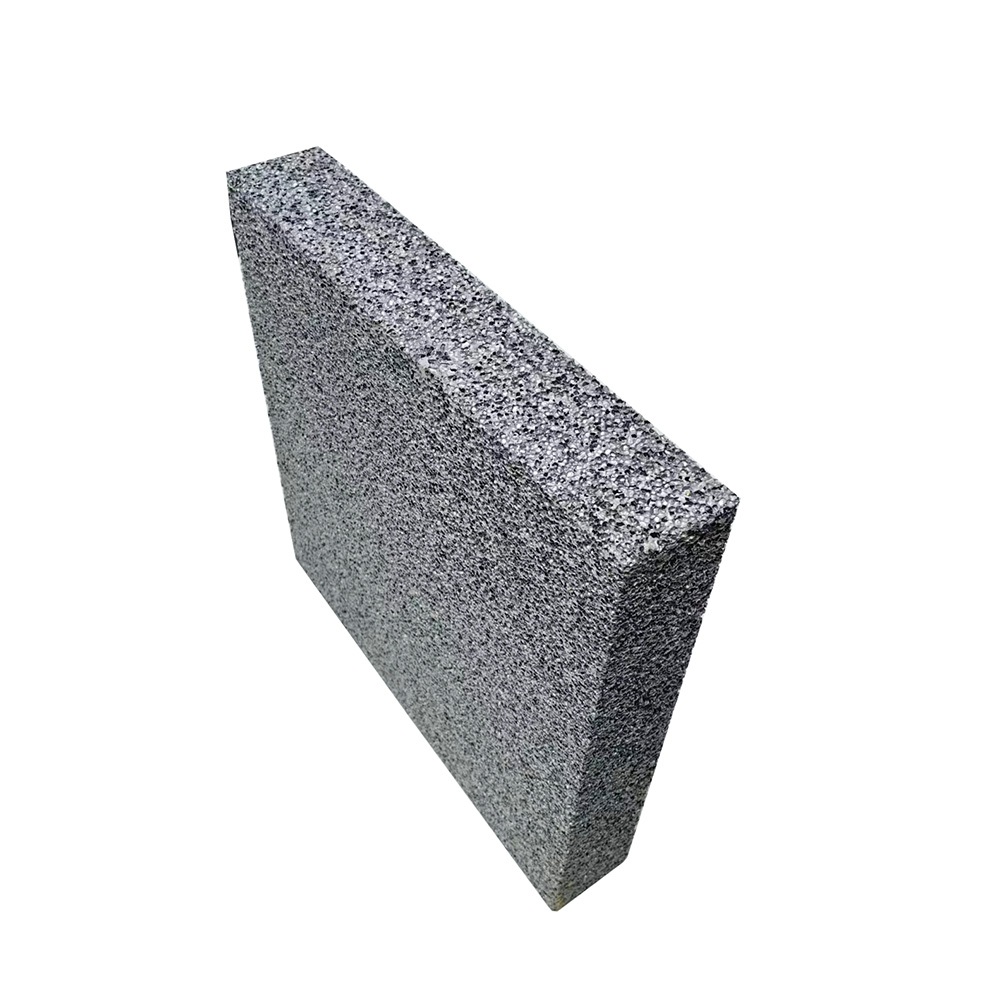

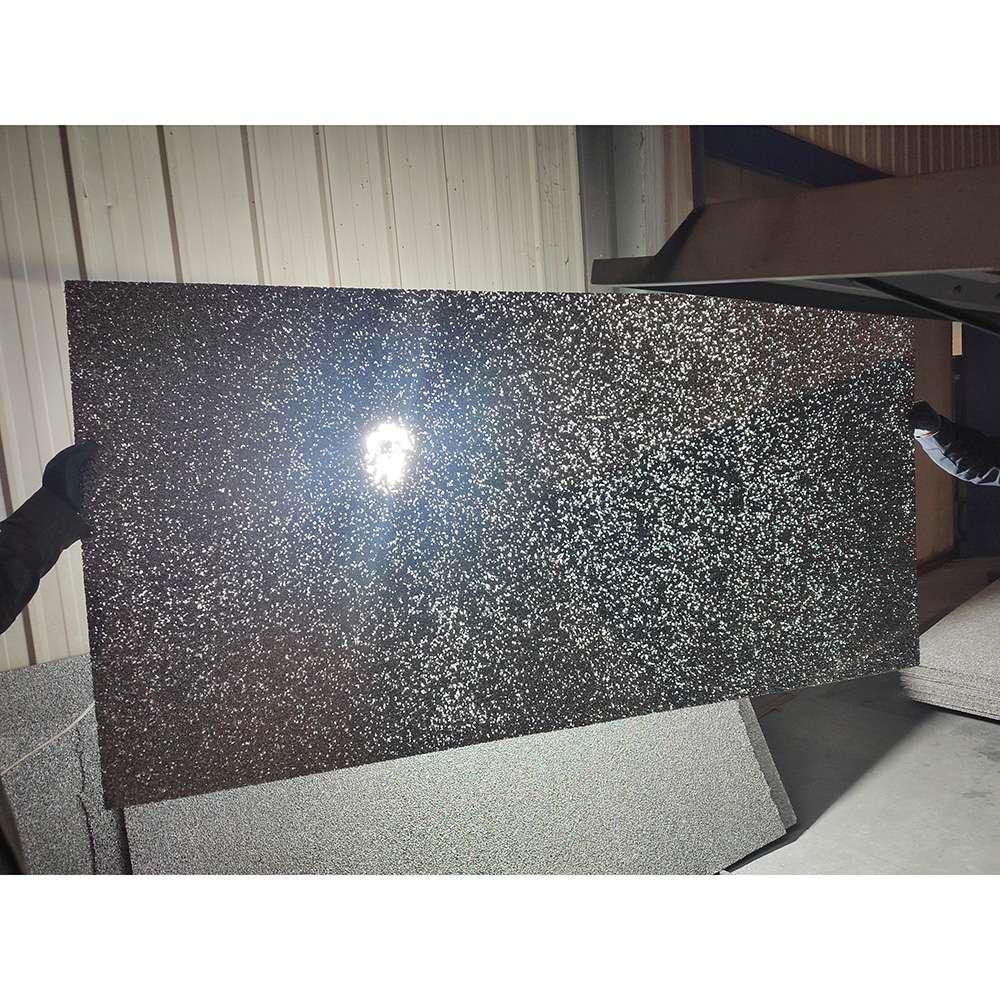

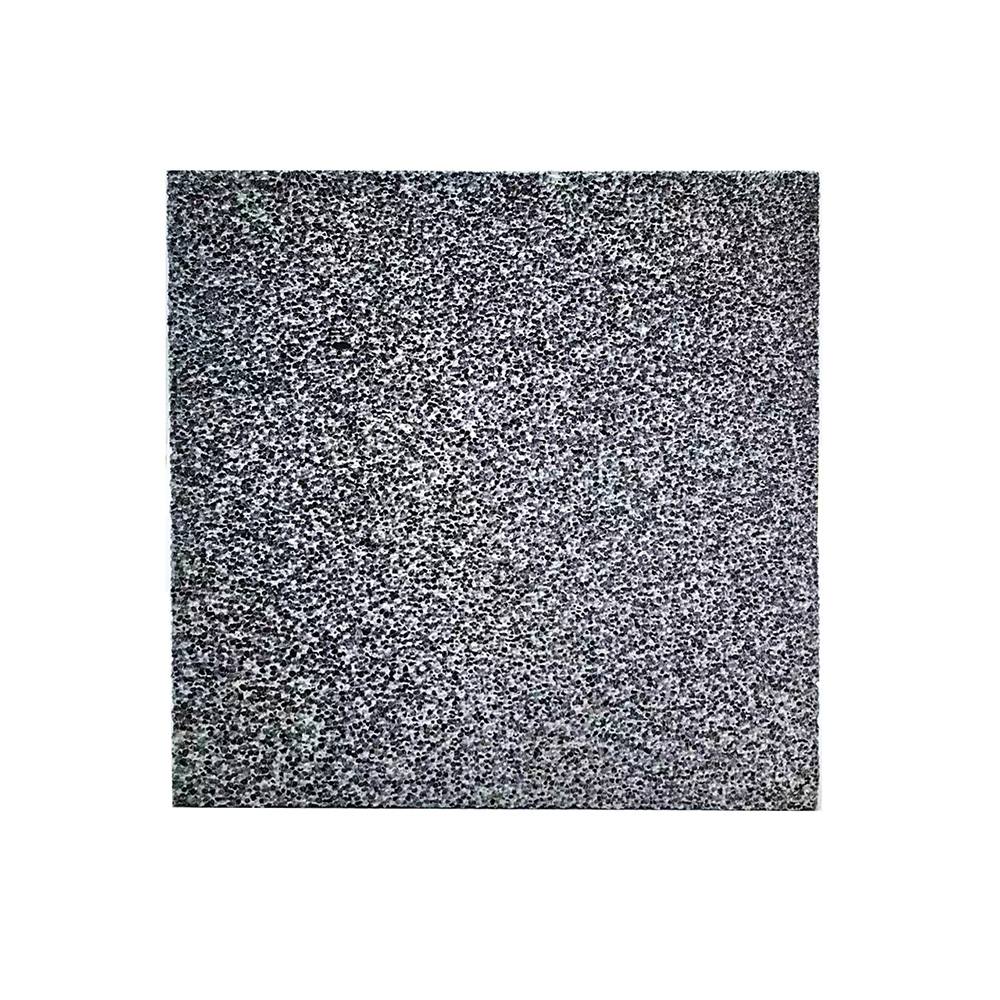

Semi Open Cell Al Metal Foam Aluminium Foam Sheet
Introduction
- Open Cell AluminumFoam has many special properties. It can be widely used in aerospace, aviation, high-speed trains, urban rail trains, shipbuilding, high-speed railways, construction, tunnels and noise barriers along the way.
- It haslight weight, high sound absorption,high shock absorption, high absorption energy, high electromagnetic shielding performance, excellent heat insulation, high temperature resistance, and non combustible combustion characteristics. It has unique environmental friendliness.
Specifications
| Type | Closed cell |
| Purity | > 97% |
| Form | Sheet or Roll, depending on size & thickness |
| Cell Size (PPI) | 10-150PPI, as per request |
| Thickness | 4mm~10mm, as per request |
| Size & Shape | can be made in different shape as per request |
| Porosity | / |
| Open Cell Rate | / |
| Volume Density | 0.25-0.75g/cm3, as per request |
| Surface Density | 200-2500 g/m ^2, as per request |
| Noise reduction coefficient NRC | >0.75 |
| Fire-proof level | A1 |
| Energy absorption | 8J/m3-30J/M3 |
| Compressive strength | 3Mpa-17Mpa |
| Flexural strength | 3Mpa-15Mpa |
Reference dimensions
| 2mm*200mm*300mm | 3mm*200mm*300mm | 4mm*200mm*300mm |
| 5mm*200mm*300mm | 6mm*200mm*300mm | 7mm*200mm*300mm |
| 8mm*200mm*300mm | 9 to 10mm*200mm*300mm | The size can be customized |
To customize various metal foams, please click the picture below for details：
 |
 |
 |
 |
 |
 |
 |
 |
